Robust Positioning For Track Geometry Data
Add a New Dimension to Geometry Data
James Rome
Rome Navigation Innovations Inc.
James_Rome@uml.edu

We Have Developed A Package to Precisely Position
Geometry Car Data. This is Currently Being Used By Amtrak

Data from one run to the next is lined up within a ft.

Geodetic positioning is generally better than that achievable
with GPS , even if GPS is not available in the vicinity

Output of turn-key program is the same as input file , with Milepost and ft. Corrected.
That is, output is naturally compatible with existing applications using the data

It Uses Geometry Data and available GPS off geometry cars ,and special
"Static Files" developed for the instrumented corridor

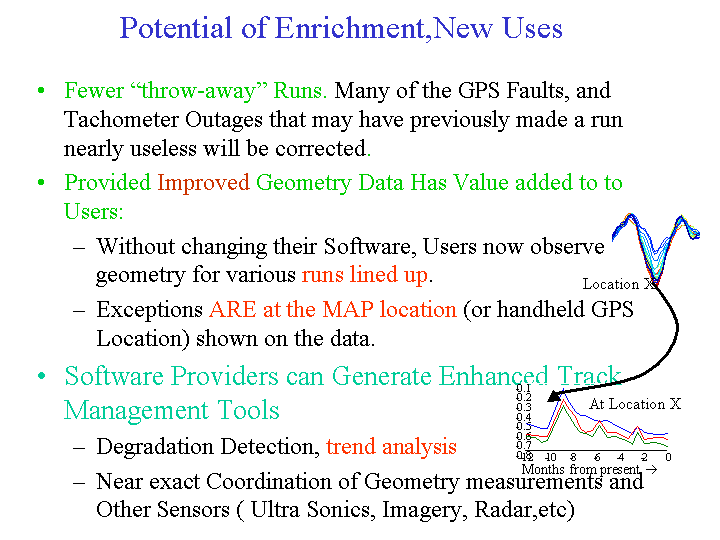

Position Corrected means:

1. Geometry Data on One Run Aligned to Other Runs
       Data Aligned to about 1 ft.
       Change and Trend Analysis is Easy

2. Locate An Exception to Better than GPS Accuracy, Even if GPS
is not available in area. And Incredible Improvement in Availability
    of High Accuracy Geodetic Positioning:

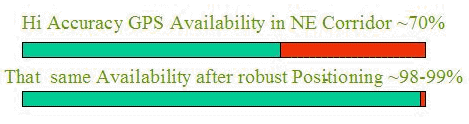

Availability improvement

Fundamental Operation of the Process:

Input:
1. Static Files (click for explanation now)
2. Geometry Data off Car
3. GPS Data off car

Output:
1. Image of input geometry with Milepost and ft Corrected
2. Quality Plots
3. Ancillray Files

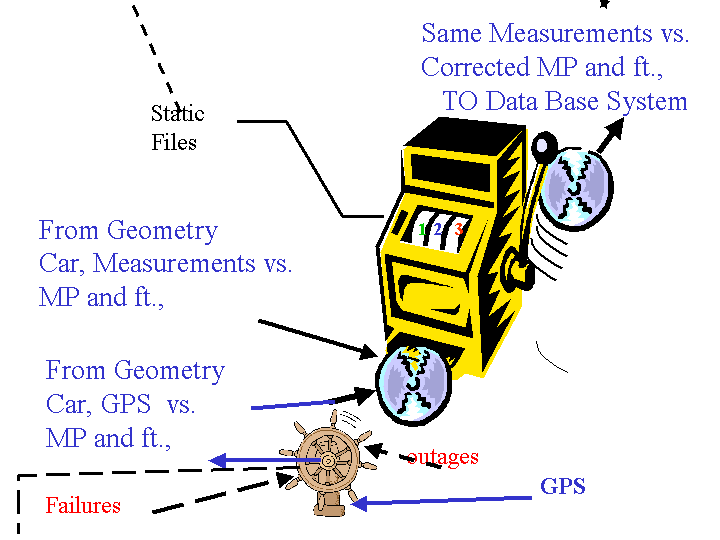

Process: Technician Inputs Data, Stores output, See Figure.

                                     Explanation
                                    of static files
                       system config

Explanation of GPS Behavior

Example Results Shown Here:

Plotted next are simple plots of Gage, vs. ft. for a given milepost.
For multiple runs eventually aligned by the program.

Actually data from two parallel tracks are included here.
One, Track 3 is the "normal" Track, Track 4 is Alternate Track

First it is shown as the data is off the geometry car

Then a nearly identical file is shown after position aligned, through program

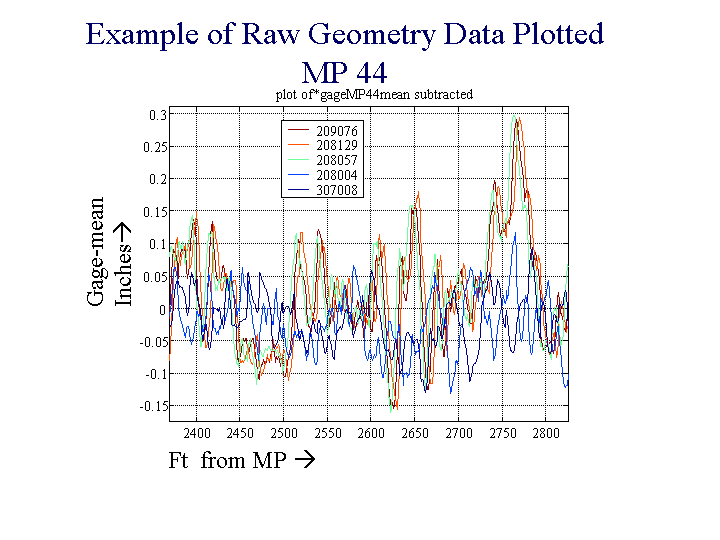

First As The Data is off Geometry Car:

Off geomtery car

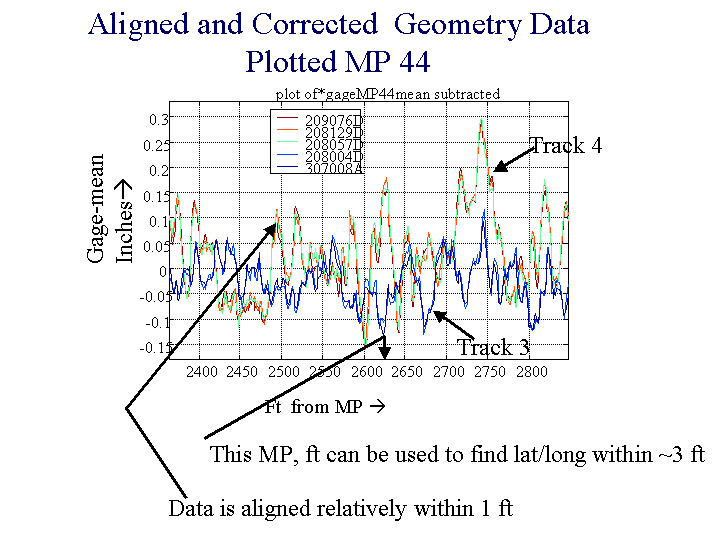

Data After Alignment, After Running the Program ( using same plotting program)

   Learn more about the methods of positioning , and synergisms of approach

         Learn More About Those Static Files

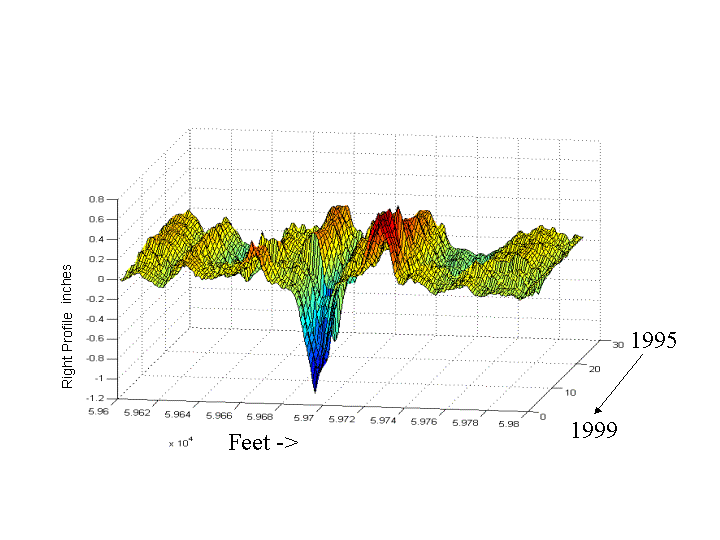

PERFORMING CHANGE DETECTION ANALYSIS WITH ALIGNED DATA

How is the Robust Positioning Process Run? Example of process

       How Do we go about Getting this program capability

Another Application: Error Analysis of Geometry Measurement system (powerpoint)
